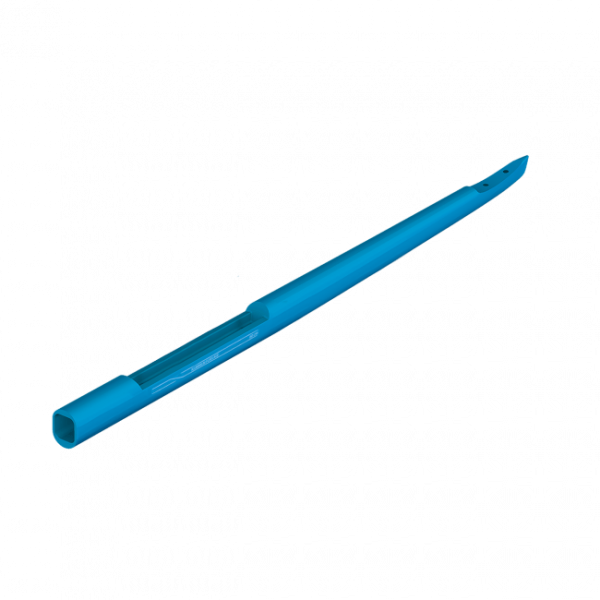

Titan Fuselage 60 Kite
Length : 60cm
Weight : 0.61 kg
The TITAN fuselage 60 is a fuselage that connectes to F-ONE aluminium or carbon masts via a TITAN connection. It is made of aluminium 6061, CNC machined with high precision and fully anodized. The TITAN fuselage 60 must be fasten to the mast or mast foot using three M6x25mm tapered head screws.
At the forward end, this fuselage can accept all wings of any size with FCD connectors. Once it is plugged in, the front wing must be fastened with 210mm main rod. A stabilizer can be fastened at the back using two M6x16mm tapered head screws . The craddle for the stabilizer was designed to keep the foil in trim when using F-ONE stabilizers.
